AM-7 | Magic Arm + clamp set
The Leofoto AM-7 is an articulated arm that allows you to easily adjust the position of your equipment.
Product code: FY4739
Code of supplier: Fomei Global - CY
Warranty: 24 months (Company 24 months)
We have over 30 years of experience
We have over 30 years of experience
Take advantage of our specialists’ advice
Take advantage of our specialists’ advice
We will provide service for you throughout the product’s lifetime
We will provide service for you throughout the product’s lifetime
Do you need help?
Call: +420 603 587 465
Submit a question using the form
Call: +420 603 587 465

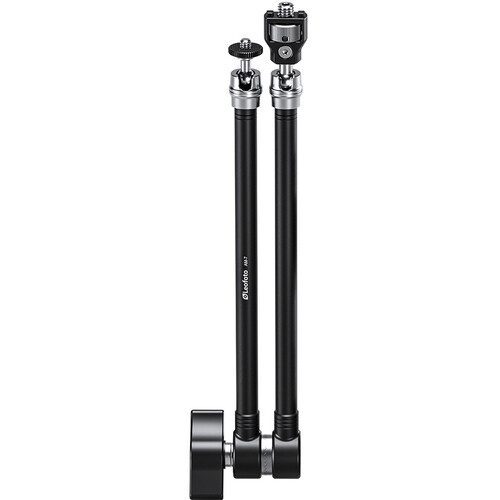

FOMEI AM-7 Positioning Arm
The Leofoto AM-7 articulating arm is designed for flexible and precise positioning of devices or accessories. It is an articulating arm that allows for easy adjustment of your equipment's position.

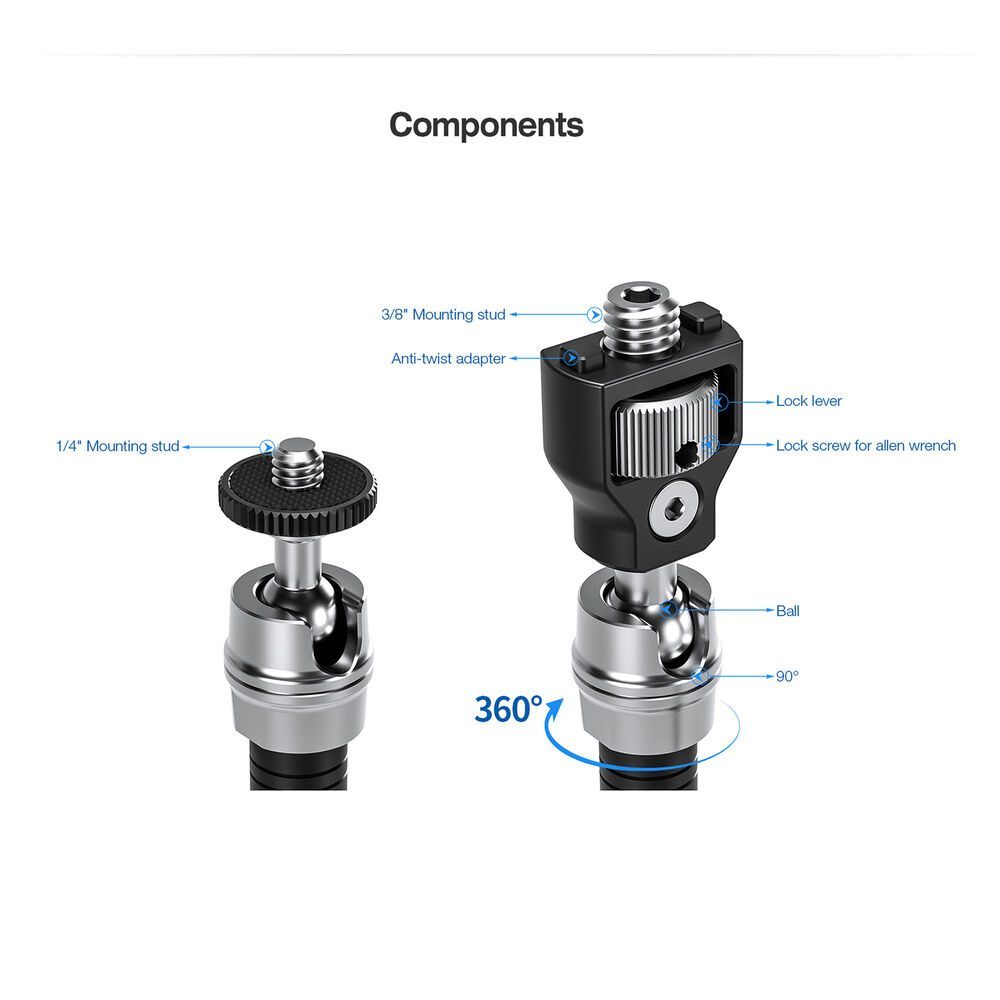

One end of the arm is equipped with a lockable 3/8"-16 mounting screw, allowing for 360° rotation and 90° tilt. The other end features a 1/4"-20 mounting screw with 90° tilt capability.
Technical Specifications
- Dimensions: Overall Length (Extended): 54 cm; Folded Length: 310 mm; Width: 70 mm; Thickness: 29 mm
- Weight: 0.492 kg
- Load Capacity: 5 kg
Mounting Screws
- One End: 3/8"-16
- Other End: 1/4"-20
Range of Motion
- One End: 360° Rotation, 90° Tilt
- Other End: 90° Tilt
