Universal mount for optics
The Leofoto FDM-03 Dual Mount is designed for the precise parallel mounting and alignment of two or more different optical devices on a tripod. It is the ideal solution for long-range shooters, hunters, or birdwatchers who need to use, for example, a spotting scope with a rangefinder or a spotting scope with a camera at the same time.
A comprehensive and compatible solution

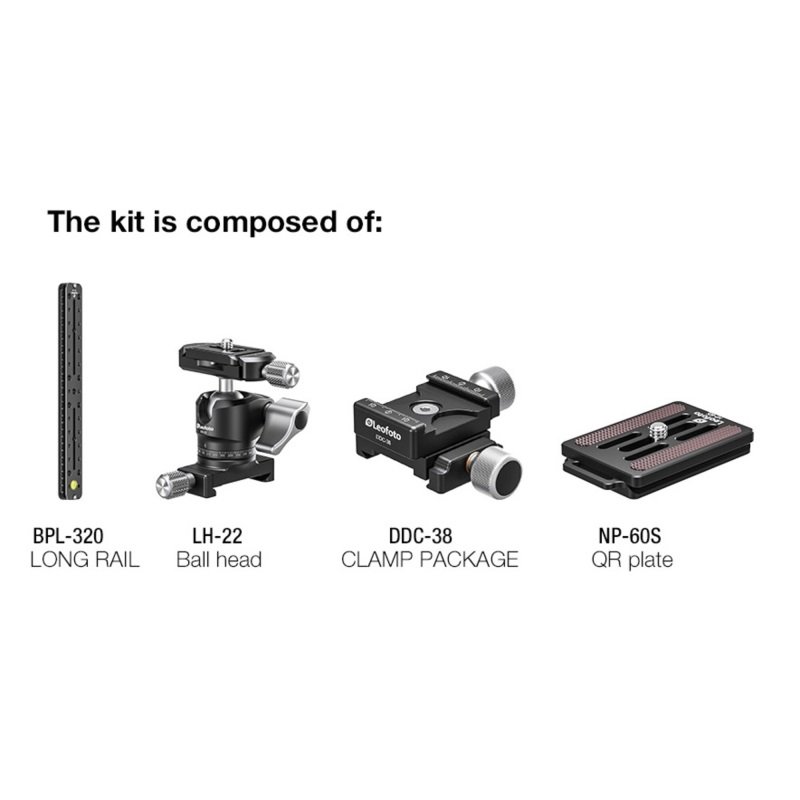

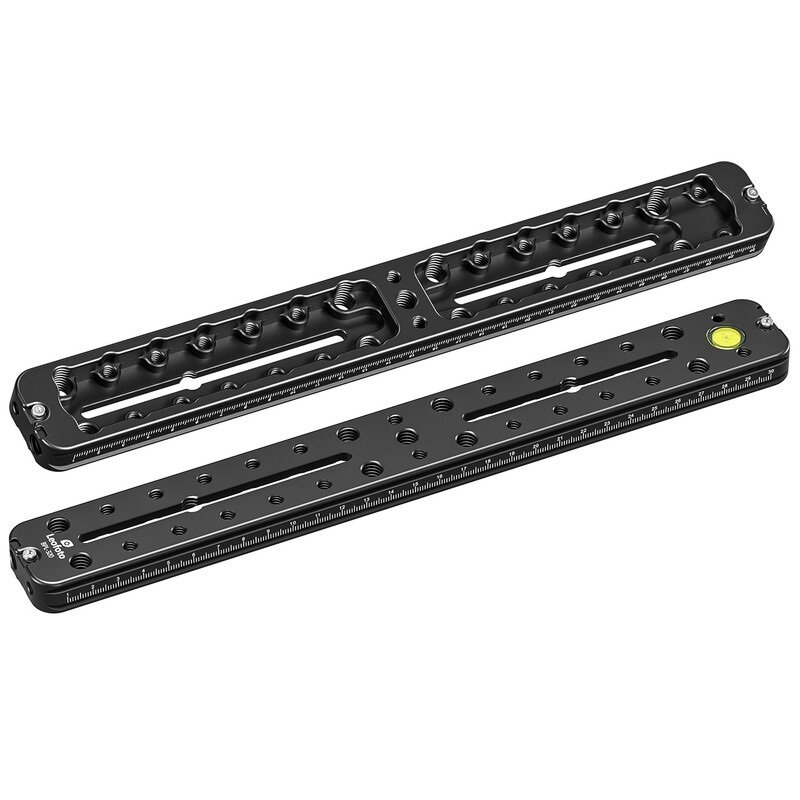

This sturdy mount consists of a long BPL-320 adapter rail, an LH-22 ball head with an Arca-Swiss clamp,
a DDC-38 cross clamp, and PU-25 and NP-60S quick-release plates. The mount can be easily attached to any
Arca-Swiss clamp, and thanks to its various tripod threads, it is also compatible with other tripod heads.
With a maximum width of 320 mm and a weight of 600 grams, it offers both stability and portability.
Top-quality materials and precision manufacturing
Leofoto uses high-quality 6061-T6 aluminum alloy, which contains magnesium and silicon, for its metal
parts. This material is characterized by high strength, good toughness, and excellent corrosion resistance,
with a yield strength comparable to that of structural steel. All components are milled from solid material
on state-of-the-art CNC machines, which ensures significantly higher stability and reliability than cast
parts.
